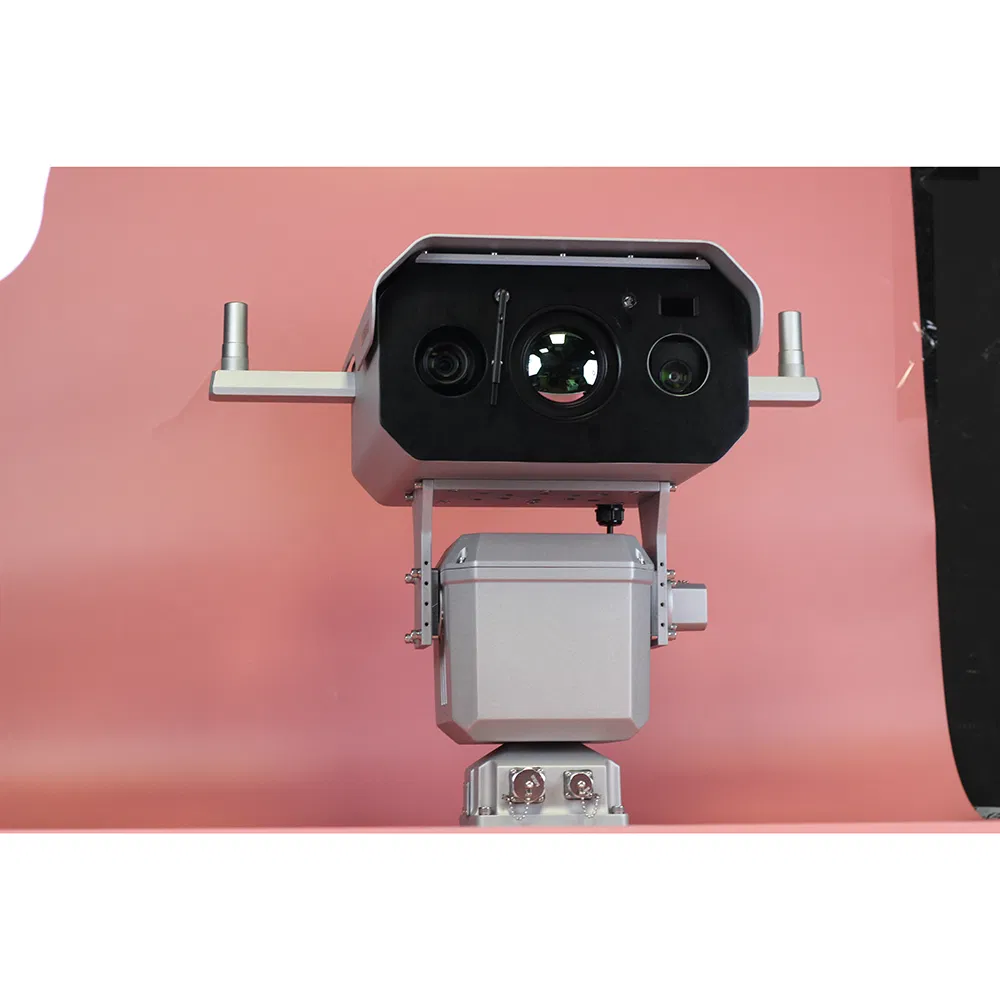

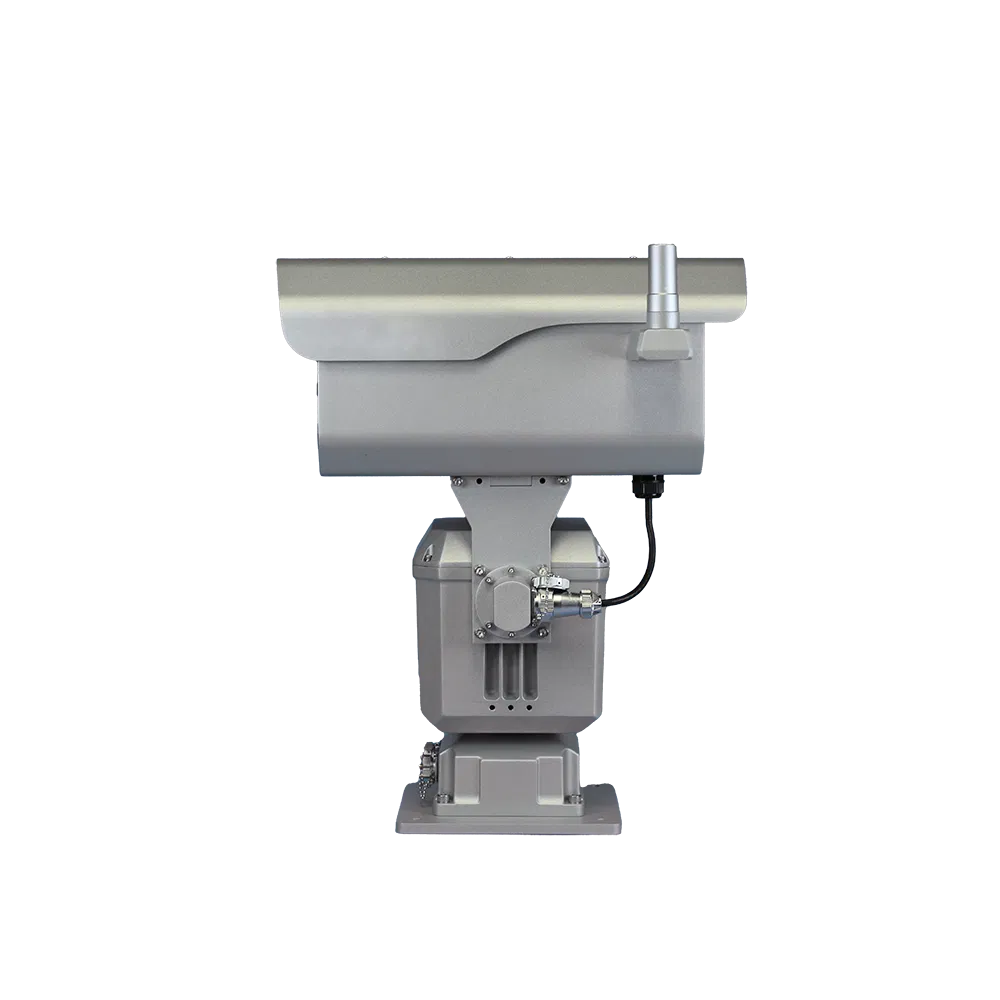

Motorized MID-Load Pan Tilt Positioner for Heavy Duty Outdoor Use

Customization:	Available
Technology:	Pan / Tilt / Zoom
Style:	Pan/Tilt

📊 Basic Information

Model NO.

SOAR1040

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Kind

Autofocus Lens

Feature

Waterproof, Weatherproof, Vandal-proof

Distance

≧30m

Sensor Size

1/3 inch

🔍 Product Description

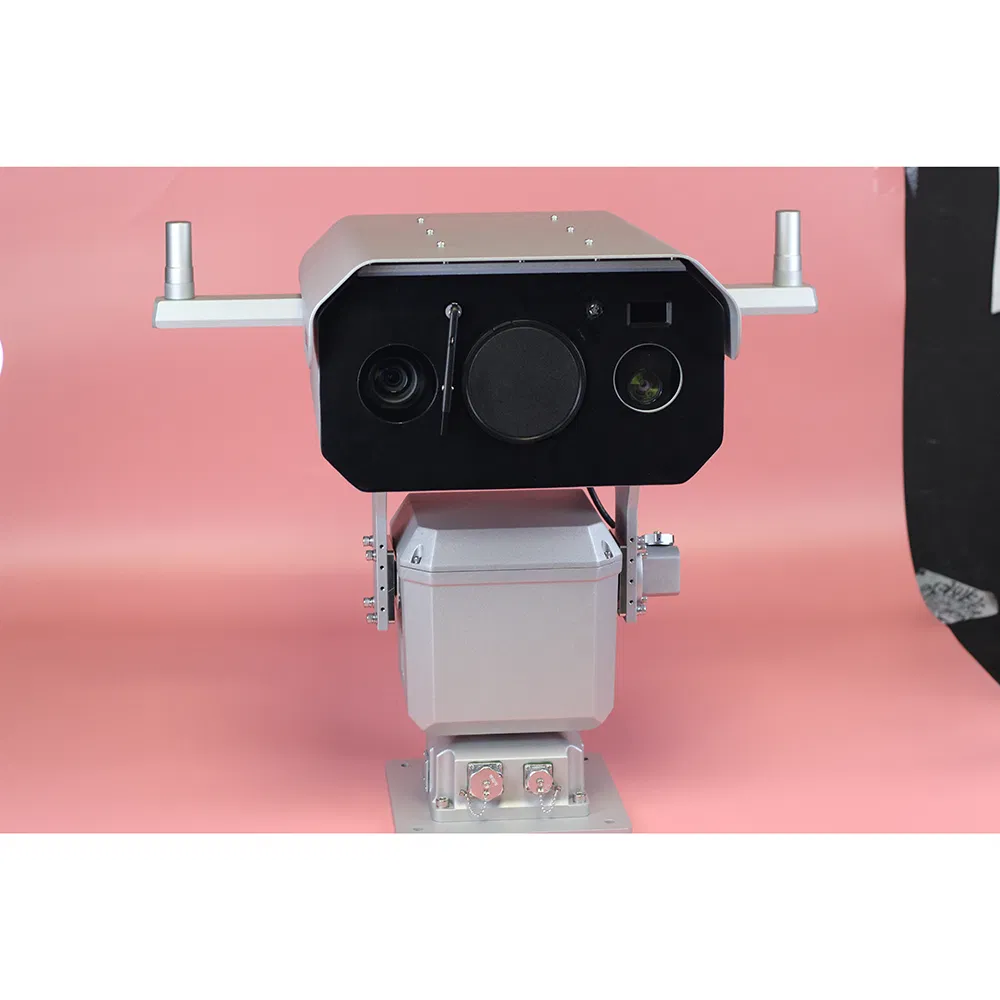

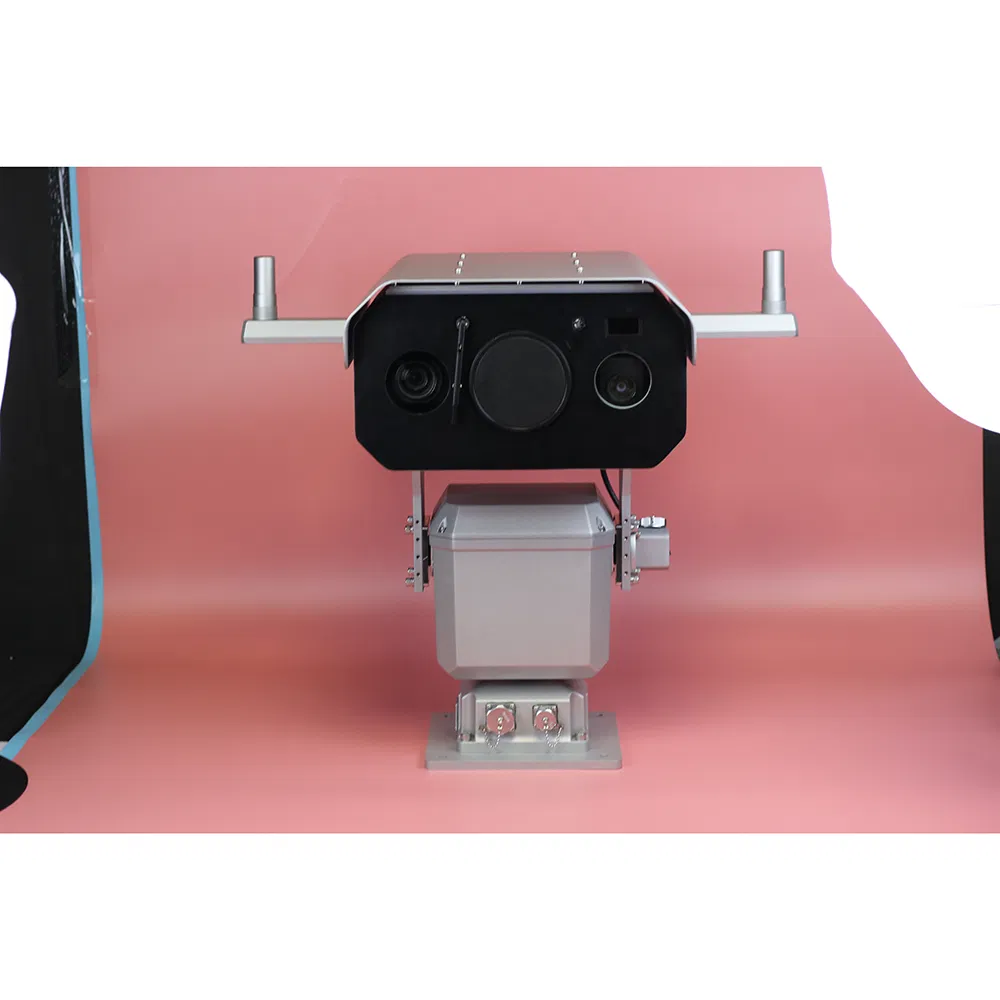

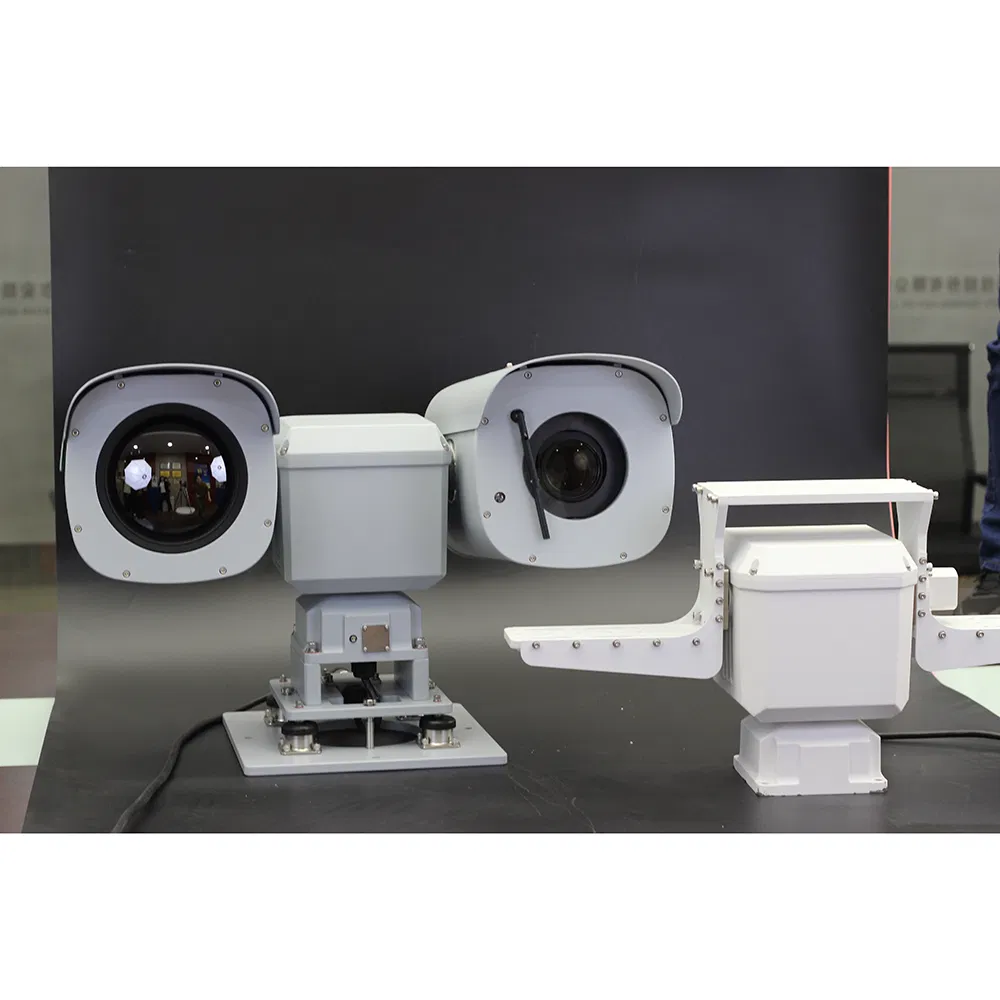

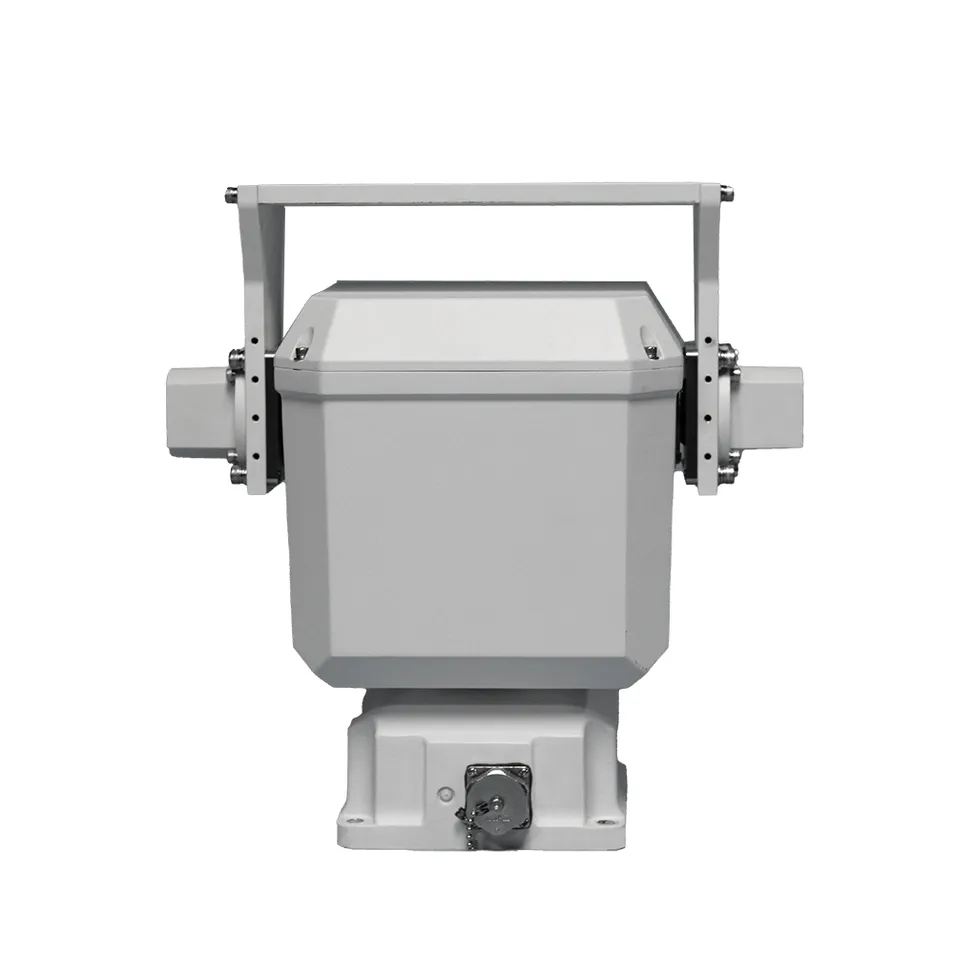

Mid-load Heavy Duty Pan Tilt Positioner

The SO1040 Series Pan/Tilt system accommodates various single payload using a versatile bracketing system for top mounting. It is designed for easy integration, serving as an open platform that offers the necessary flexibility while reducing development and integration efforts.

This unit has demonstrated its reliability in numerous mission-critical applications for positioning cameras, lasers, antennas, and other instruments in both stationary and mobile settings. Features a harmonic gear drive, ensuring high precision and long life.

🚀 Product Highlights

Supports up to 30kg payload for heavy-duty multi-sensor integration.
High-precision harmonic drive with zero-backlash performance and 0.005° positioning accuracy.

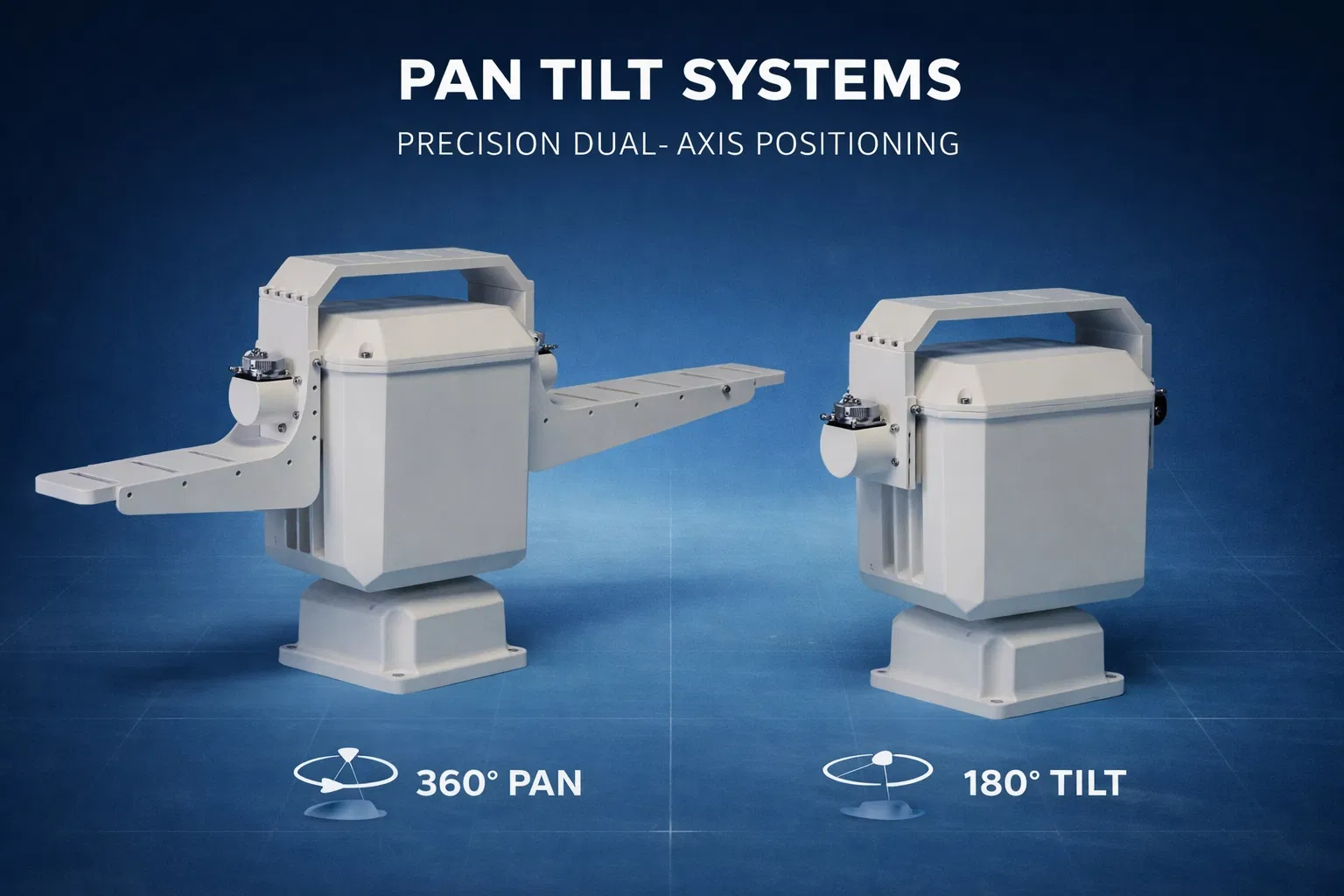

360° continuous pan and ±90° tilt with ultra-smooth low-speed control.
Enables long-range surveillance with thermal imaging and 120× optical zoom.
Built-in AI supports human, vehicle, vessel, and drone detection with auto tracking.
IP67-rated rugged design ensures reliable operation from –40°C to +70°C.
Pelco-D protocol compatibility and easy integration.

⚙️ Specification

Payload
Top / Side Payload	Up to 30kg
Pan Tilt
Pan/Tilt Range	Pan: 0° to 360° endless; Tilt: –90° to +90°
Pan/Tilt Speed	Max speed up to 60°/s (varies by load)
Preset / Accuracy	255 Presets; Pan: 0.005°, Tilt: 0.01°
Protocol	Pelco-D, RS-422/RS-485/RJ45
General
Power	DC24V ± 10% / DC48V ± 10% (Max 60W)
Environment	-40°C to +70°C; IP67 Protection
Dimensions	335 mm × 192 mm × 337.5 mm
Weight	Approx. 9kg

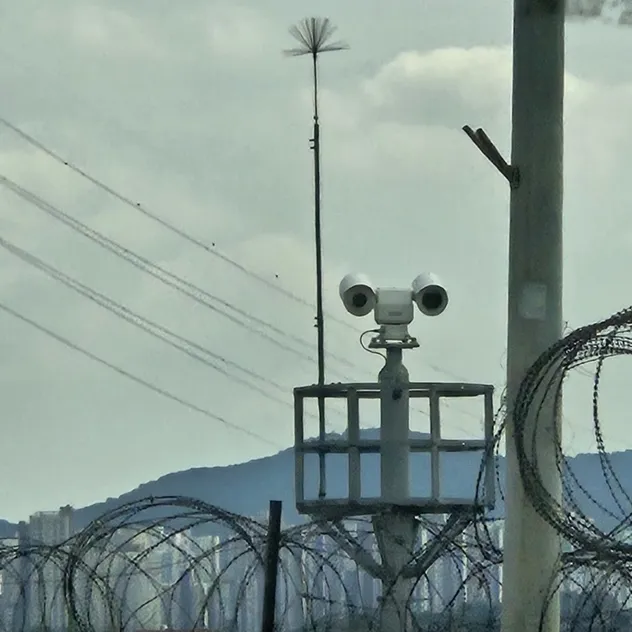

🌍 Application Scenarios

🏢 Technical Capability

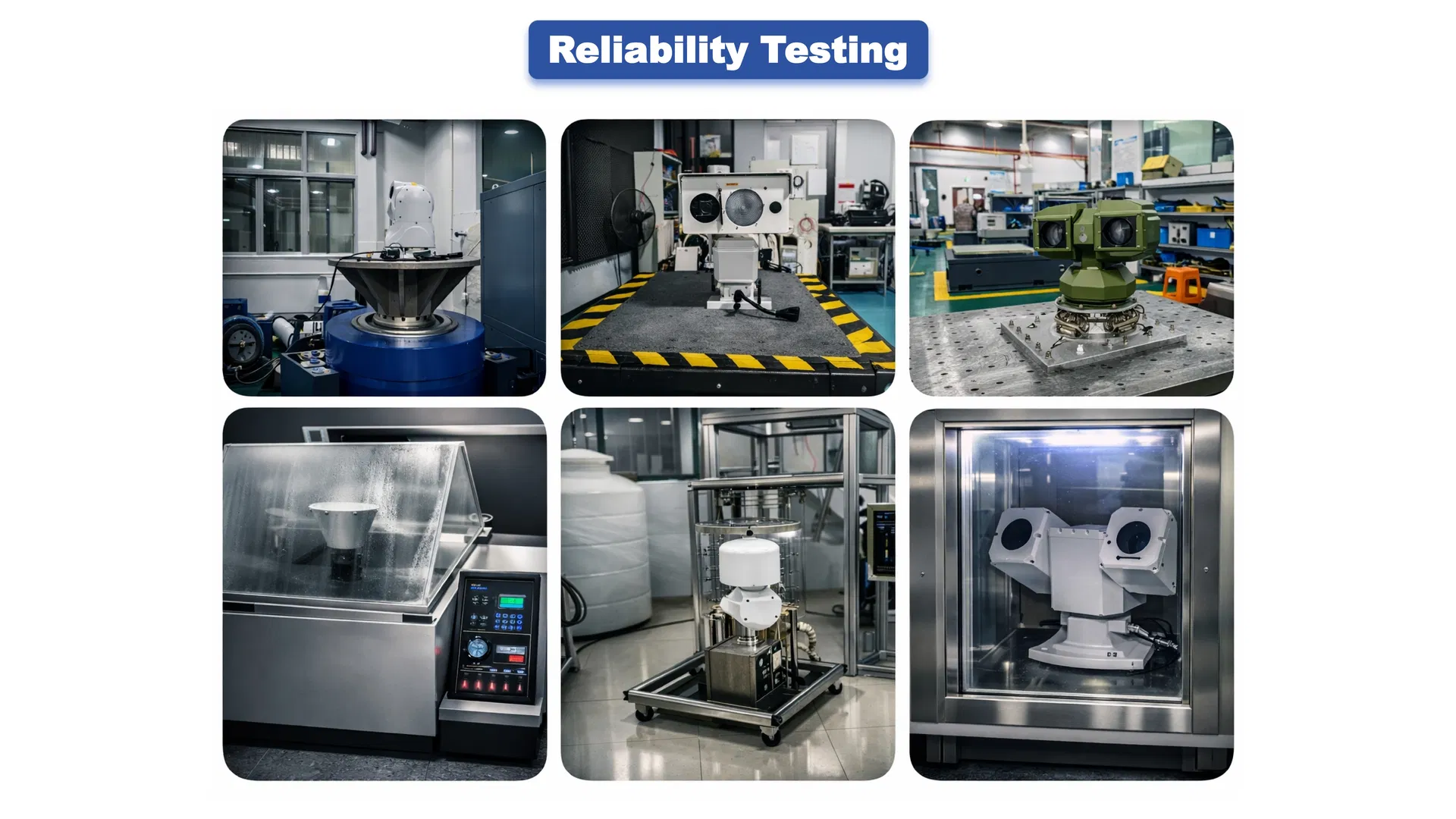

Specializing in PTZ camera systems and advanced optical imaging solutions, the manufacturer serves demanding sectors including maritime monitoring, long-range surveillance, anti-drone systems, and defense. Key business focuses on mobile surveillance, power line inspection, forest fire prevention, robotics cameras, and industrial machine vision. With a dedicated team of experts averaging 11 years of experience, we provide core components and complete customized system solutions through continuous innovation and collaboration.
