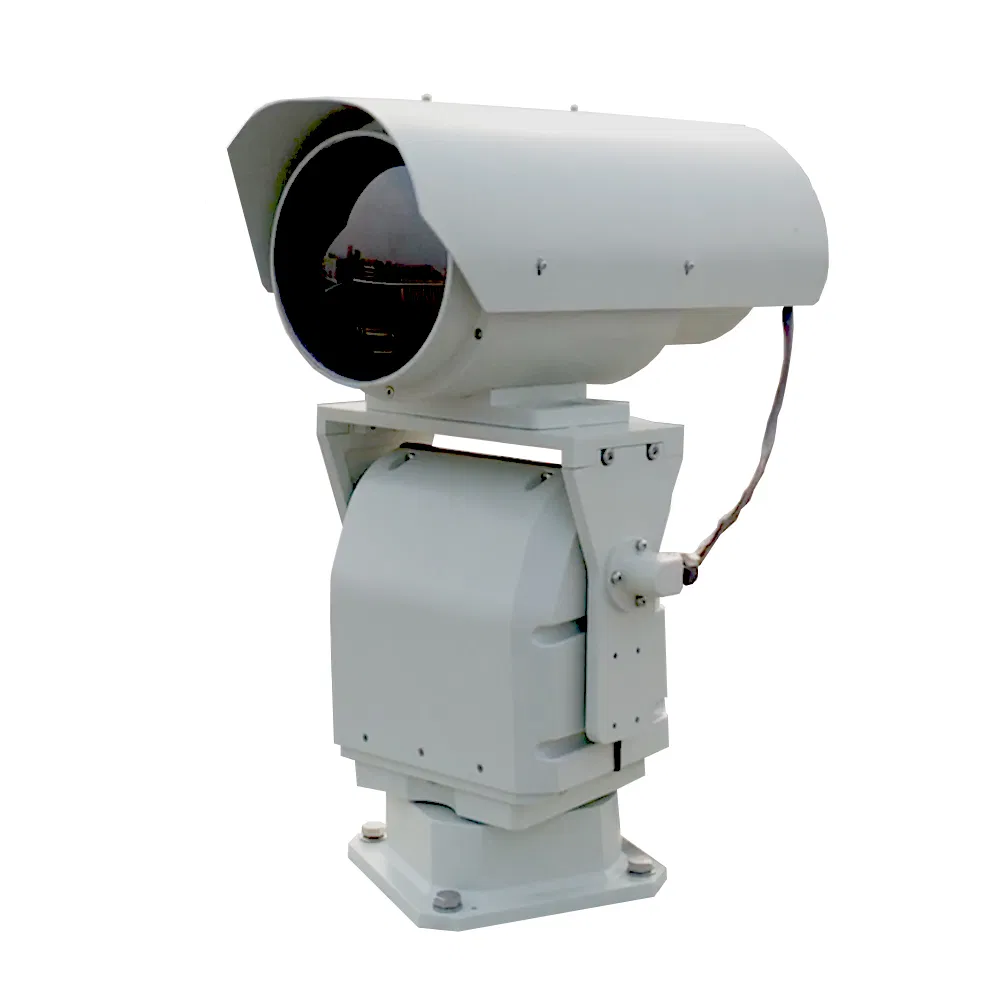

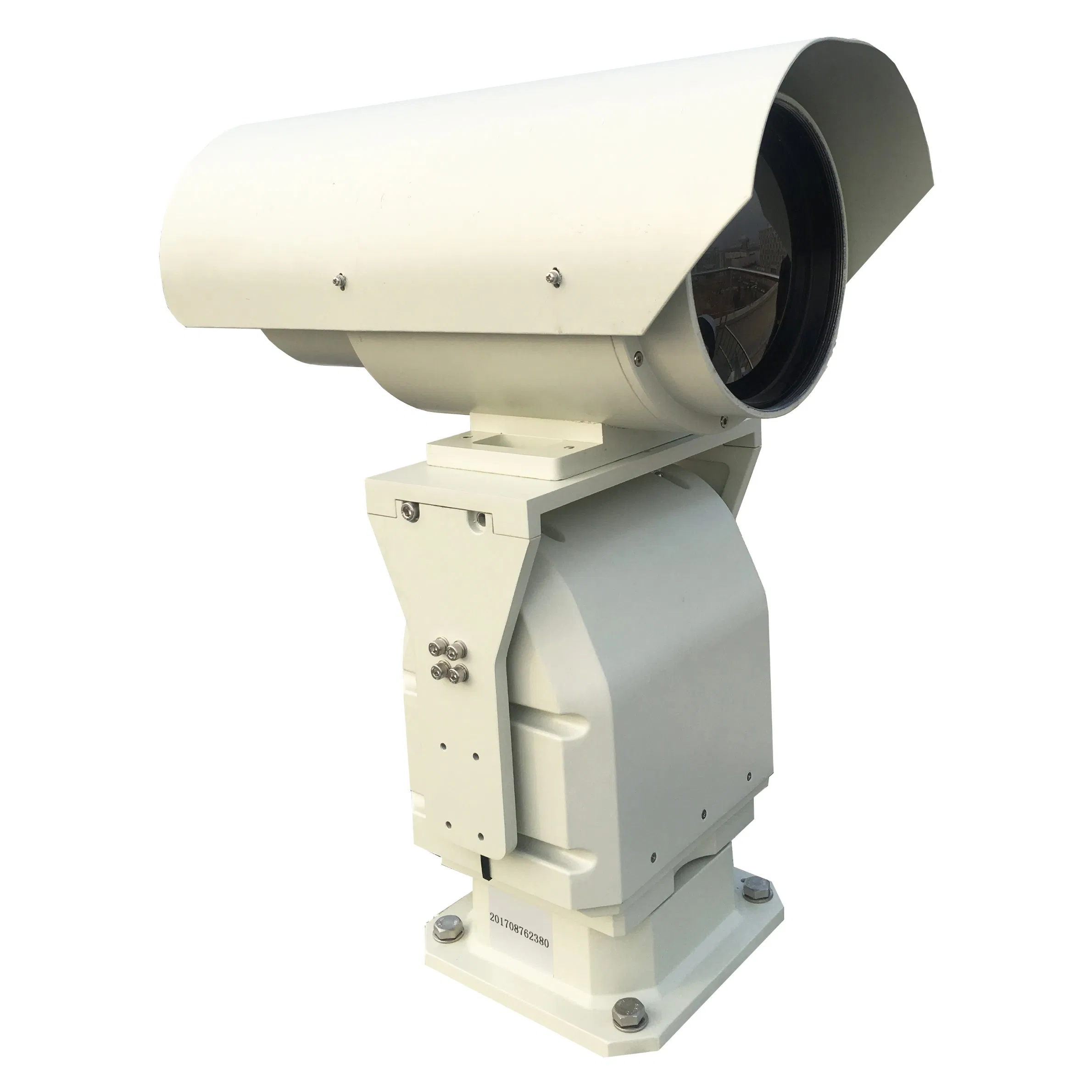

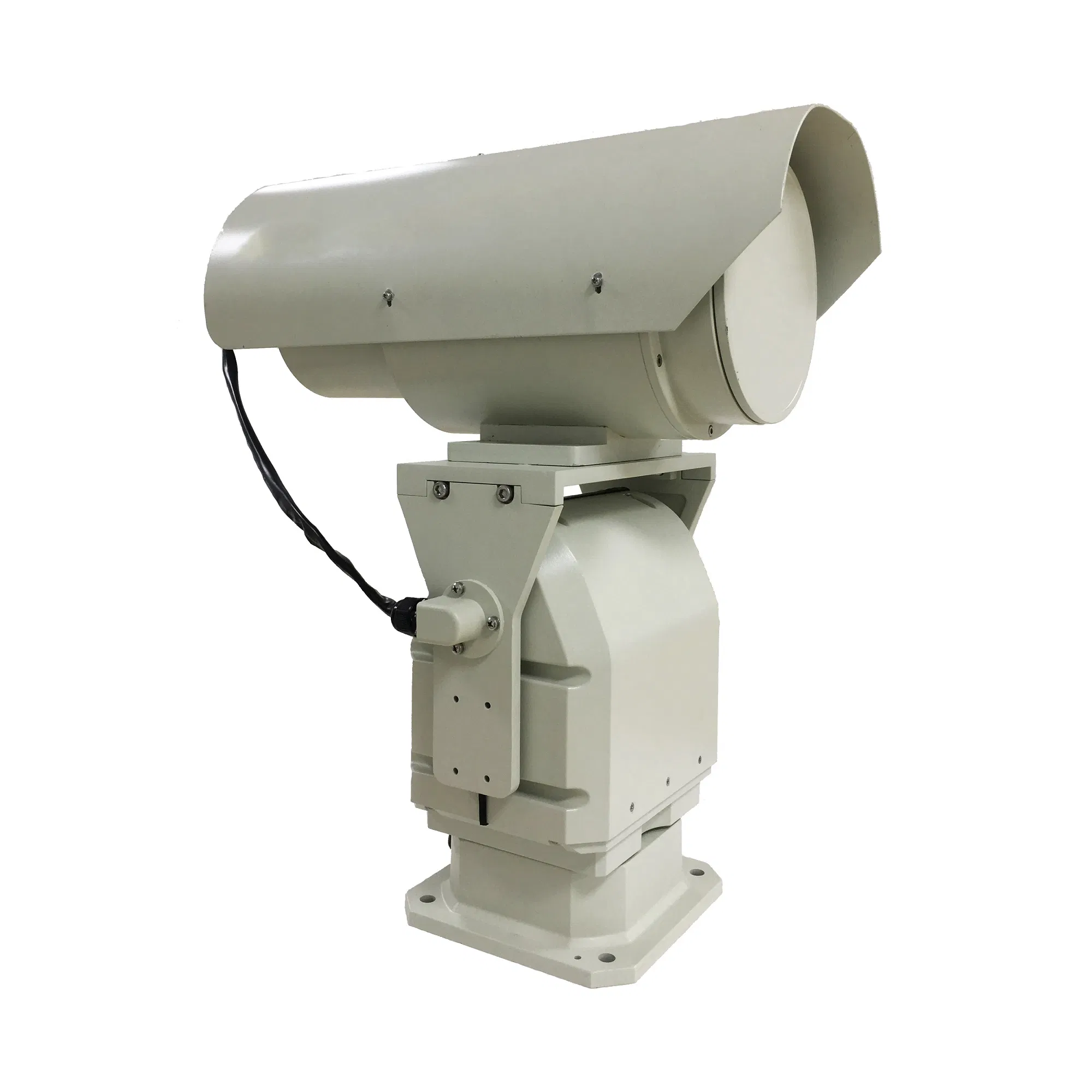

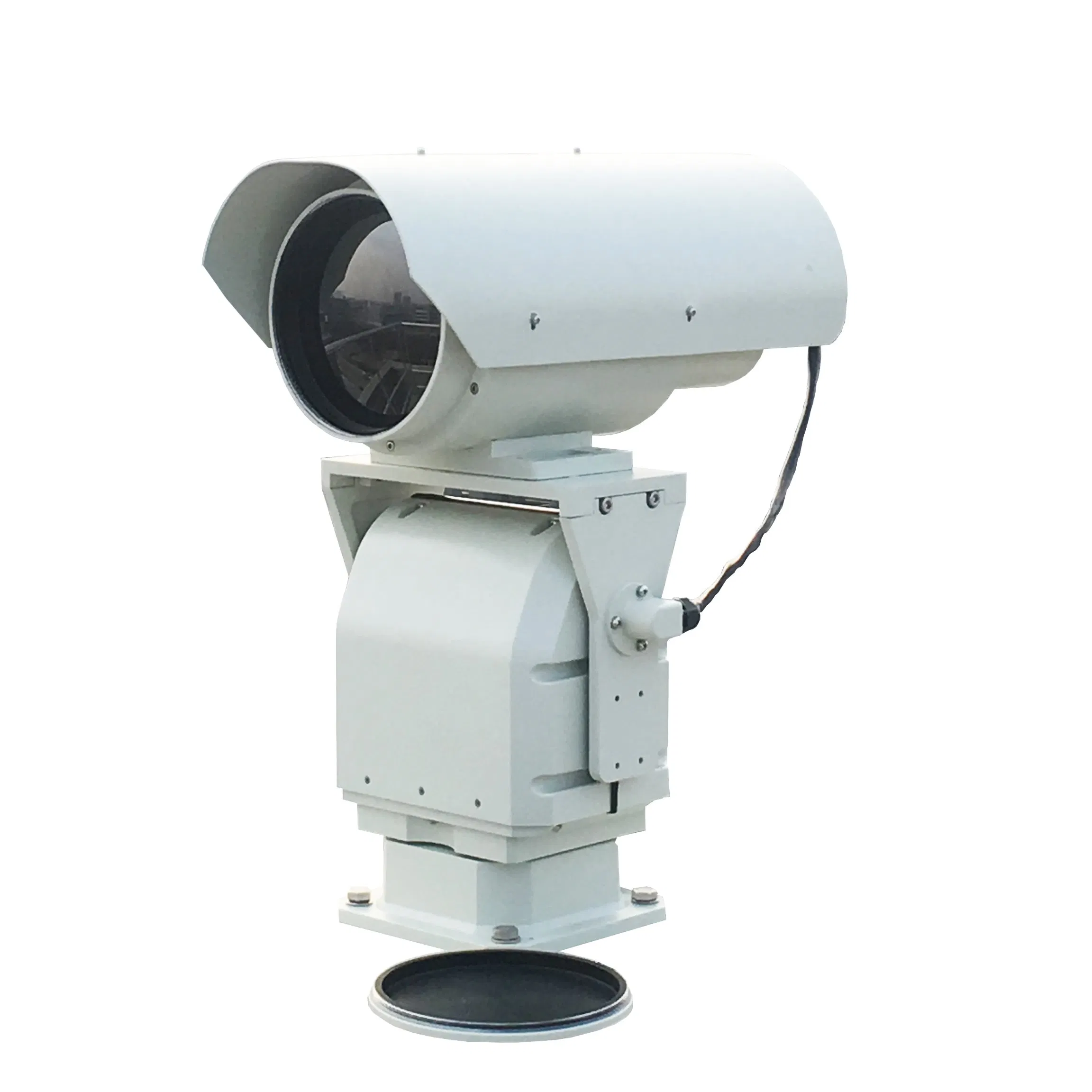

OEM 4km Forest Fire Detection PTZ Thermal Camera with Ivms

1 / 5

OEM 4km Forest Fire Detection PTZ Thermal Camera with Ivms

Customization:	Available
Technology:	Infrared
Style:	Zoom Lens

Send Inquiry

Product Description

Basic Info.

Model NO.SHR-TIR185R

TypeCCTV Camera

SensorVox

HDMI FormatPAL Video Output

Resolution324X 256

CertificationCE, FCC

FeatureWaterproof / Weatherproof

Effective Dist.≧30m

Detection Dist.0-11880m

Focal Length36-180m

IP RatingIP66

Production2000 Units / Month

Main Features

✔High resolution uncooled microbolometer infrared focal plane arrays, vox.

✔25µm or 17 µm pixel, fine image quality for small target observation.

✔High sensitivity, NETD can reach 50mk at 25Hz frame rate.

✔30~150mm continuous zooming for wide range search and long-distance identification.

✔Image noise reduction processing with DDE function; multiple color modes (hot white/black/pseudo).

✔Precision casting aluminium alloy shell, sealed, waterproof, and nitrogen-filled.

✔Low power consumption, quick start-up, and stable performance.

Technical Indicators

Monitoring Distance	People (1.8m×0.5m): Detect 4320m, Recognize 1080m, Identification 540m Vehicle (2.3m×2.3m): Detect 11880m, Recognize 2970m, Identification 1440m
Detector	Uncooled FPA detector (vox), 384×288 resolution (640×512 optional), 8~14μm spectrum, ≤50mK NETD.
Thermal Lens	36~180mm, 5x optical zoom, F1.0 ~ 1.2, E zoom/focus.
Pan-tilt	Pan: 0°~ 360° continuous; Tilt: +30°~ -45°; Speed: Pan 0.1°~9°/S; 255 Presets; Pelco-D/P.
Environment	Working Temp: -25ºC~+55ºC; Protection: IP66; Anti-vibration: GB/T 4857.10-2005.
Power & Weight	DC12V, ≤8W power consumption; Weight ≤7Kg; Size 440mm×213mm×217mm.

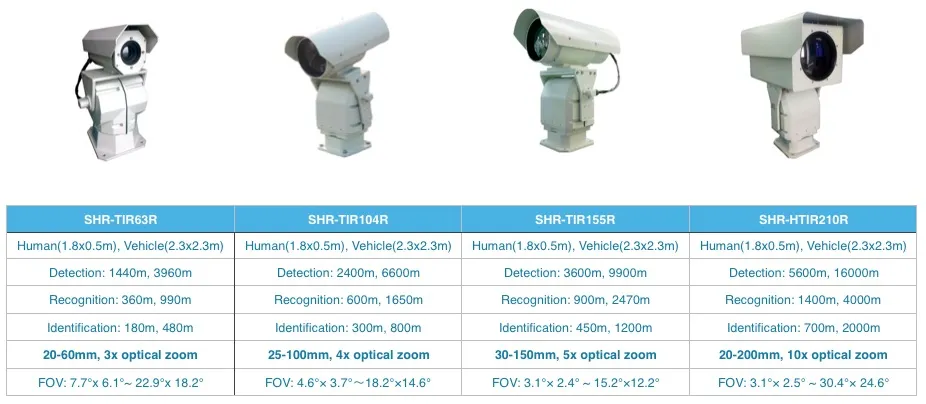

Product Visuals

Applications & Services

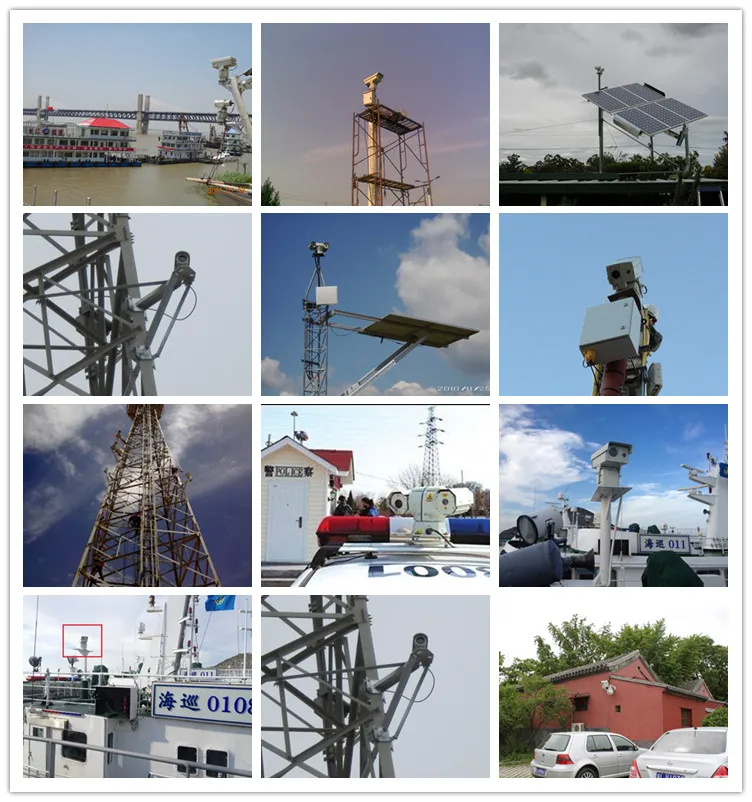

Products are widely used for outdoor surveillance such as oilfield monitoring, city monitoring, frontier defense, railways, highways, airports, and tourist sites.

Our Services

★One year standard warranty (Extended available).
★Life-long technical support.
★OEM and customized product options.

Frequently Asked Questions

Q1: What is the maximum detection distance for vehicles? A: The camera can detect vehicles (2.3m×2.3m) at a distance of up to 11,880 meters.

Q2: Does the camera support night vision? A: Yes, it utilizes uncooled microbolometer infrared focal plane arrays (Vox) for high-quality thermal imaging in total darkness.

Q3: Is the camera suitable for harsh outdoor environments? A: Absolutely. It features an IP66-rated aluminum alloy shell, is nitrogen-filled, and is designed to be waterproof and weatherproof.

Q4: What are the available zooming capabilities? A: The camera features a 36~180mm thermal lens with 5x optical continuous zoom and additional electronic zoom.

Q5: What control interface does the camera use? A: It uses an RS485 interface and supports Pelco-D and Pelco-P protocols for pan-tilt-zoom control.

Q6: What is the standard warranty period? A: We generally offer a one-year warranty, with extended warranty and life-long technical support available.
